Clevis & Tang on NixOS

Camille Mondon

camille.mondon@ens.fr

École normale supérieure

Julien Malka

julien.malka@ens.fr

École normale supérieure

February 4, 2024

Motivation: full-disk encryption on remote servers

Servers data should be protected by full-disk encryption
Problem: full-disk encryption requires physical intervention at boot
Possible solution: spawn an openssh server in initrd. Even with this, synchroneous intervention is still required.

`clevis`, the automated encryption framework

https://github.com/latchset/clevis

The clevis project is a pluggable framework for automated decryption.

The encryption-decryption is left to jose, a C implementation of the JavaScript Object Signing and Encryption standard.

Pins

In clevis terminology, a pin is a plugin which implements automated decryption.

To encrypt some data with clevis, one can use this command:

clevis encrypt $PIN $CONFIG < $PLAINTEXT > $CIPHERTEXT.jwe

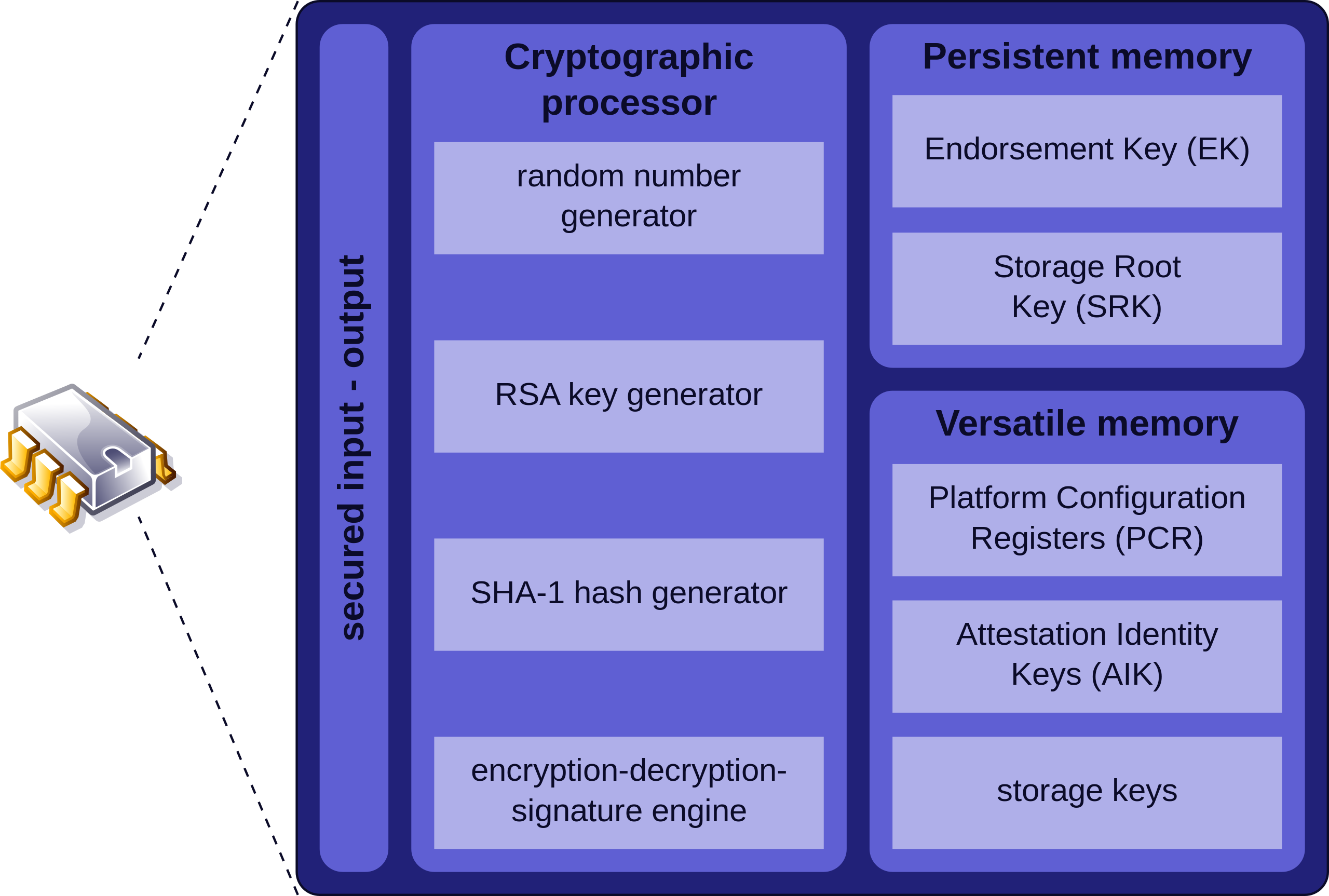

The TPM 2.0 pin

The clevis command provides support to encrypt a key in a Trusted Platform Module 2.0 (TPM 2.0) chip.

First, a key \(K\) is generated to encrypt the message. Then \(K\) is encrypted using the TPM 2.0 chip, and will be decrypted the same way when clevis needs \(K\) to decrypt the message stored in the JWE.

Example 1

echo -n $SECRET | sudo clevis encrypt tpm2 '{}' > secret.jwe

The `tang` pin

https://github.com/latchset/tang

The tang project is a server implementation which provides cryptographic binding services without the need for an escrow. The clevis command has full support for tang.

Example 2

echo -n $SECRET | sudo clevis encrypt tang '{"url": "http://192.168.0.10:7654"}' > secret.jwe

Shamir Secret Sharing (SSS)

Adi Shamir (1979)

The clevis command provides a way to mix pins together to provide sophisticated unlocking policies. This is accomplished by using an algorithm called Shamir Secret Sharing (SSS).

Example 3

echo -n $SECRET | sudo clevis encrypt sss \
  '{"t": 2, "pins": {"tpm2": {}, "tang": [{"url": "http://192.168.0.120:7654"}, {"url": "http://192.168.0.10:7654"}] }}' \
  > secret.jwe

In depth view of the `tang` protocol

The Diffie-Hellman key exchange

\(g\) is a public parameter.
Hypothesis: Given \(C = A*B\), is is computationally infeasible to retrieve \(A\) and \(B\).
After the protocol execution, both parties have agreed on a common symmetric encryption key \(K\), while an eavesdropper has not aquired any information.

sequenceDiagram
  participant Server
  participant Client
  Note over Server: Generates S
  Note over Client: Generates C
  Server->>Client: S∗g
  Client->>Server: C∗g
  Note over Server: Computes K = C∗g∗S
  Note over Client: Computes K = S∗g∗C

Figure 2: Key exchange.

The McCallum-Relyea protocol

sequenceDiagram
  participant Server
  participant Client
  Note over Server: Generates S
  Note over Client: Generates C
  Server->>Client: g∗S
  Note over Client: Computes K = g∗S∗C
  Note over Client: Encodes the message with K
  Note over Client: Discards K

Figure 3: Key provisioning, message encoding.

sequenceDiagram
  participant Server
  participant Client
  Note over Client: Generates E
  Client->>Server: x = g∗E + g∗C
  Server->>Client: y = x∗S
  Note over Client: Computes K' = y - g∗S∗E = K
  Note over Client: Decodes the message with K

Figure 4: Message decoding.

\[\begin{aligned} K' &= y - gSE = xS - gSE \\ &= (gE + gC)S - gSE = gES + gCS - gSE \\ &= gCS = K \end{aligned}\]

Security of the McCallum-Relyea protocol

An attacker gaining access to the client is not able to recover the secret if the machine is not able to contact the tang server
An attacker gaining access to the tang server is not able to recover the secret if it does not have access to the client
An MITM attacker can not infer any information on the secret by the same hypothesis as Diffie-Hellman

The `NixOS` implementation

The `tang` module

Added in #247037 by jfroche, thanks!

Enable it with:
```
services.tang.enable = true;
```
Specify the range of IPs allowed to communicate with the tang server:
```
services.tang.ipAddressAllow = "192.168.0.0/24";
```
(This has to be a trusted subnet that you fully control)

Don’t forget to open the TCP port in the firewall:

networking.firewall.allowedTCPPorts = [ 7654 ];

You can customize it with:

services.tang.listenStream = [ "80" ];

The `clevis` module

Runs in initrd just before root disk decryption
Tries to run
```
clevis decrypt < secret.jwe
```
with provided secret
If success, uses the value to decrypt root partition
If failure, fallbacks on interactive unlocking

Usage

First, create a secret using the clevis CLI:

echo -n $SECRET | clevis encrypt tpm2 '{}' > secret.jwe

Declare you encrypted devices in your NixOS configuration:
```
boot.initrd.clevis.devices."rpool/root".secretFile = ./secret.jwe;
```
Supported encrypted systems:
- zfs
- bcachefs
- luks
Profit!

Demo

One virtual machine with bcachefs as root partition
Two different tang servers (because why not)
One TPM 2.0 device
We require at least the TPM and 1 of the 2 tang servers to be available at boot time

Figure 5: How to use Clevis.

Future work

Package more pins (YubiKey for example)
Support more encryption solutions
